Zinc Coated Steel Wire Strand 4mm 6mm 8mm 1x19 Galvanised Stay Wire For Agricultural Greenhouses
Structure: 1*19 · Diameter: 4.2-14mm
Details

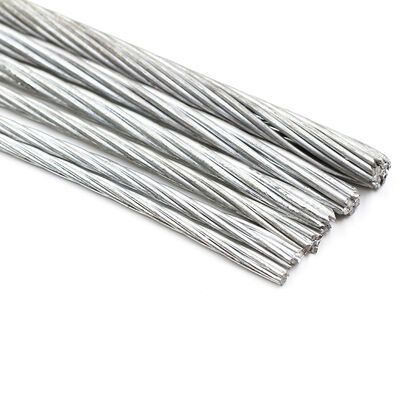

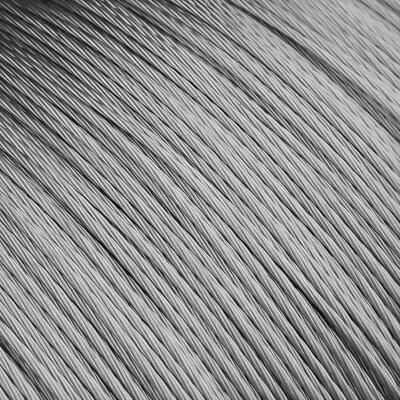

Hot Dipped Galvanised Stay Wire 3.0mm 4.2mm 5.0mm 6.0mm For Agricultural Greenhouse
Galvanized steel strand is a metal product made by twisting hot-dip galvanized steel wire, which has the characteristics of corrosion resistance, high strength, good flexibility, good seismic performance, and easy installation. It is widely used in fields such as construction, transportation, electricity, petroleum, and agriculture.
Key Specifications
| Product Name | Galvanised Stay Wire |
|---|---|
| Steel Grade | 45#/50#/60#/70# High Carbon Steel |
| Structure | 1*7 |
| Diameter | 2.1-12mm |

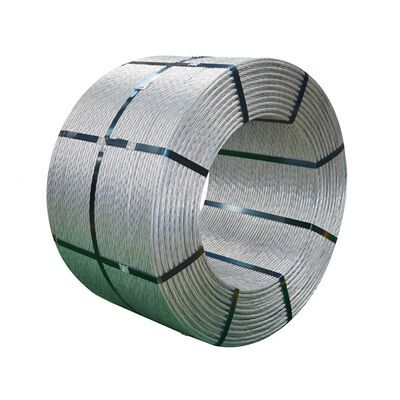

| Package | Wooden Reel/ Iron Reel/ Roll |
| Application | Messenger Wire,Barrier Cable,Structure Cable |
Trade Information
Brand Name
CSW
Model Number
CSW-GA-1*7
Place of Origin
Shandong, China
Certification
SGS, ISO, CE, ROHS
Standard Packaging
500-3000m/Reel
Delivery Time
5-10 Days
Payment Terms
T/T
Supply Ability
70000 Tons/Year
Need this exact spec?Factory quote within 24 hours — send diameter, quantity & destination port.
Inquire Now
WhatsApp
Product Introduction
Galvanized steel strand is a metal product made by twisting hot-dip galvanized steel wire, which has the characteristics of corrosion resistance, high strength, good flexibility, good seismic performance, and easy installation. It is widely used in fields such as construction, transportation, electricity, petroleum, and agriculture.
Product Advantages
- Customized strength grade: We can provide products with ultra-high strength grades of 1670MPa and 1770MPa, covering needs beyond the industry's conventional range of 1270-1570MPa, and meeting the high standards of special projects such as large-span bridges and super high-rise buildings.
- Refined dimensional tolerance: The diameter tolerance of steel strands is controlled at ± 0.05mm, while peers generally have a tolerance of ± 0.1mm, which is more suitable for high-precision anchors and connectors, reducing installation risks and component losses caused by dimensional deviations.
- Stress free twisting technology: By pre tensioning to eliminate residual stress in the steel wire, the tension is adjusted in real time during the twisting process, and the finished steel strand does not bend in an "S" shape after unfolding.
- Compared with peer products, there is no need for additional straightening during installation, reducing construction time and labor costs.
Applications
Galvanized steel strand is a steel product made by twisting multiple galvanized steel wires. The galvanized layer can effectively prevent corrosion of steel strands in harsh environments and extend their service life. Due to its high strength, corrosion resistance, and good stability, it is widely used in fields such as power, communication, agriculture, construction, and engineering.
Such as messenger wire, guy wire, strength member, and can also be used as grounding wires for overhead power transmission, barrier cable on sides of highways, or structure cable in building.
Certifications
Our steel wire rope meets international production standards and has obtained multiple certifications such as SGS, CE, ISO, etc.
Technical Data — Diameter, Weight & Breaking Load
| Structure | Wire Diameter /mm | Wire Strand Diameter /mm | Cross Section Area /mm² | Nominal Tensile Strength/MPa | Approx. weight (kg/km) |
|---|---|---|---|---|---|
| 1x7 | 1.00 | 3.00 | 5.50 | 6.43-8.45 | 43.70 |
| 1x7 | 1.20 | 3.60 | 7.92 | 9.25-12.17 | 62.90 |
| 1x7 | 1.40 | 4.20 | 10.78 | 12.60-16.56 | 85.60 |
| 1x7 | 1.60 | 4.80 | 14.07 | 16.44-21.62 | 112.00 |
| 1x7 | 1.80 | 5.40 | 17.81 | 20.81-27.36 | 141.00 |
| 1x7 | 2.00 | 6.00 | 21.99 | 25.69-33.79 | 175.00 |
| 1x7 | 2.20 | 6.60 | 26.61 | 31.10-40.88 | 210.00 |
| 1x7 | 2.60 | 7.80 | 37.17 | 43.43-57.11 | 295.00 |
| 1x7 | 3.00 | 9.00 | 49.50 | 57.86-76.05 | 411.90 |
| 1x7 | 3.20 | 9.60 | 56.30 | 65.78-86.50 | 447.00 |
| 1x7 | 3.50 | 10.50 | 67.35 | 78.69-103.48 | 535.00 |
| 1x7 | 3.80 | 11.40 | 79.39 | 92.76-121.97 | 630.00 |
| 1x7 | 4.00 | 12.00 | 87.96 | 102.80-135.14 | 698.00 |
| Standard Cross-Sectional Area (mm²) | Wire Diameter (mm) | Diameter (mm) | Actual Cross-Sectional Area (mm²) | Minimum Breaking Force (kg) | Weight (kg/km) |
|---|---|---|---|---|---|
| 25 | 7/2.2 | 6.6 | 26.6 | 2630 | 228 |
| 35 | 7/2.6 | 7.8 | 37.2 | 3680 | 318 |
| 50 | 7/3.0 | 9 | 49.5 | 4900 | 424 |
| 50(1) | 19/1.8 | 9 | 48.32 | 4900 | 411 |
| 70 | 19/2.2 | 11 | 72.2 | 7150 | 615 |
| 95 | 19/2.5 | 12.5 | 93.2 | 9230 | 795 |
| 100 | 19/2.6 | 13 | 100.8 | 11090 | 859 |
| 120 | 19/2.8 | 13 | 116.9 | 11600 | 995 |
| 135 | 19/3.0 | 13 | 134.24 | 16200 | 1144 |
| Steel Strand | Cross Section Area (mm²) | Minimum Breaking Force Of Steel Strand/KN | Approx. weight KG/100M |
|---|---|---|---|
| 7x0.3 | 0.90 | / | 0.40 |
| 7x0.33 | 1.00 | 0.49 | 0.49 |
| 7x0.4 | 1.20 | 0.71 | 0.71 |
| 7x0.5 | 1.50 | 1.11 | 1.11 |
| 7x0.7 | 2.10 | 2.18 | 2.18 |
| 7x0.8 | 2.40 | 2.85 | 2.85 |
| 7x0.9 | 2.70 | 3.60 | 3.60 |
| 7x1.0 | 3.00 | 4.45 | 4.45 |
Values are typical mill data. Request the full mill test certificate for your exact specification.
