Zinc Coated Steel Wire Strand 4mm 6mm 8mm 1x19 Galvanised Stay Wire For Agricultural Greenhouses

Product Introduction

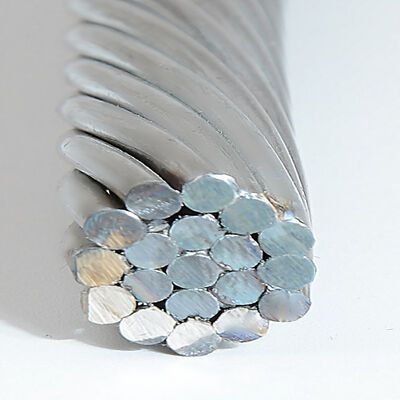

1X19 galvanized steel strand belongs to single structure steel strand, which is a metal wire twisted from 19 galvanized steel wires with the same diameter, arranged in a concentric circle of 1 central steel wire, 6 inner steel wires, and 12 outer steel wires. This structure combines high strength and good rigidity, and is often used in scenarios that require high load-bearing and stability.

Product Advantages

• High strength and low relaxation: The tightly twisted structure of 19 steel wires enables its tensile strength to reach 1270MPa-1770MPa, with minimal deformation under long-term stress, making it suitable for permanent load-bearing scenarios.
• Excellent anti-corrosion performance: The thickness of the surface hot-dip galvanized layer can reach 20μm-60μm, which can effectively slow down steel wire corrosion and extend its service life in harsh environments such as humidity and salt alkali.
• Good rigidity and torsional resistance: Compared to multi stranded steel strands, the single twisted 1X19 structure has stronger rigidity, is less prone to torsional deformation, and has better stability in vertical suspension or lateral tension scenarios.
• Uniform stress distribution: Concentric circle arrangement ensures uniform stress distribution on each steel wire, avoiding the risk of fracture caused by local stress concentration and improving overall structural safety.

Applications

Power communication: as a load-bearing reinforcement core for ground wires and optical cables of overhead transmission lines, it ensures the stability of the lines in strong winds, ice and snow weather. Construction engineering: used for prestressed anchor rods, curtain wall suspension systems, and cable components of bridges in large buildings. Transportation: The load-bearing cables of port cranes and the traction wire ropes of cable cars meet the needs of frequent high-intensity operations.

Security facilities: High voltage protective nets, steel wire fences for prison walls, both protective and non-destructive.

Certifications

Our steel wire rope meets international production standards and has obtained multiple certifications such as SGS, CE, ISO, etc.

Technical Data — Diameter, Weight & Breaking Load

Values are typical mill data. Request the full mill test certificate for your exact specification.
