1x7/ 7x7/ 1x19/ 7x19PVC+Galvanized Steel/ Stainless Steel/copper Plated Steel

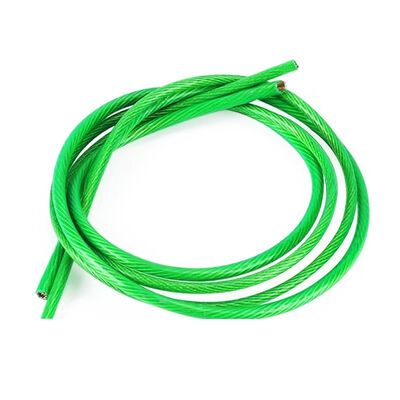

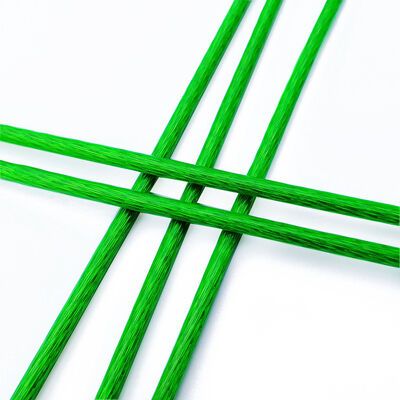

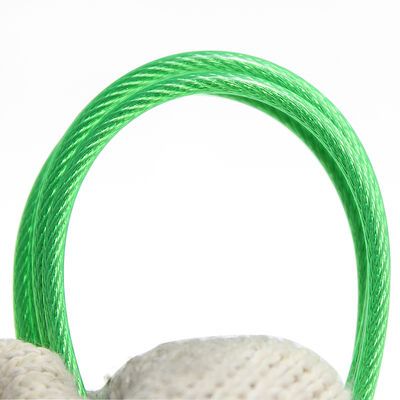

Green Plastic Coated Steel Wire Rope 4mm 5mm 6mm PVC Coated Stainless Steel Wire Rope

Key Specifications

Product Name	Plastic Coated Steel Wire Rope
Material	PVC+Galvanized Steel/ Stainless Steel/copper Plated Steel
Color	Green
Structure	1x7/ 7x7/ 1x19/ 7x19
Diameter	1-12mm
Package	Wooden Reel/ Iron Reel/ Plastic Reel/ Roll

Trade Information

Brand Name

CSW

Model Number

CSW-PC-Green

Place of Origin

Shandong, China

Certification

SGS,CE,ISO,ROHS

Standard Packaging

500-3000m/ Reel

Delivery Time

5-10 Days

Payment Terms

T/T

Supply Ability

70000 Tons/ Year

Need this exact spec?Factory quote within 24 hours — send diameter, quantity & destination port.

Inquire Now WhatsApp

Product Advantages

Doubling lifespan: The coating isolates corrosive media, extending the lifespan of ordinary steel wire ropes by 2-3 times and significantly reducing replacement costs Performance upgrade: Combining high strength of steel wire rope (tensile strength up to 1670-1770MPa) with wear-resistant and insulating properties of plastic coating, suitable for complex working conditions in multiple scenarios Application Guide Quality Certifications Our steel wire rope meets international production standards and has obtained multiple certifications: SGS CE Rohs ISO

Technical Data — Diameter, Weight & Breaking Load

Size	Wire Rope Dia	After Coated Dia	Reasonable Loading	100m Weight	Rope Structure
1mm	0.8mm	1mm	11.5kg	0.33kg	7*7
1.2mm	1mm	1.2mm	15.9kg	0.49kg	7*7
1.5mm	1.2mm	1.5mm	30kg	0.72kg	7*7
2mm	1.5mm	2mm	41.8kg	1.17kg	7*7
2.5mm	1.5mm	2.5mm	52kg	1.99kg	7*7
3mm	2mm	3mm	73.5kg	2.53kg	7*7
4mm	3mm	4mm	159.3kg	4.96kg	7*7
5mm	4mm	5mm	237.8kg	8.2kg	7*7
6mm	5mm	6mm	367.5kg	12kg	7*19
8mm	6mm	8mm	516.2kg	17.9kg	7*19
10mm	8mm	10mm	856.5kg	29.5kg	7*19
12mm	10mm	12mm	1400kg	45.8kg	7*19

Inner Wire Dia	Outer Dia	Application
0.38mm	0.88-1.38mm	Fishing line, live fish buckle, small hanging gear
1-2mm	2-4mm	Horticultural climbing rope, clothesline, lighting hanging line
3-8mm	4-10mm	Grape trellis construction, greenhouse fixation, fence
≥10mm	12-16mm	Industrial traction, steel structure bundling
