1x19 Galvanized Steel Strand 4mm 5mm 12mm 13mm 15mm 17mm for Farm Cherry Plant

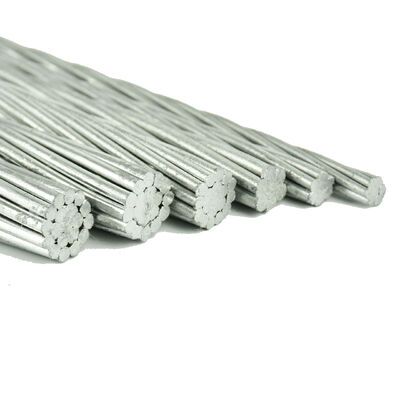

The 1X19 galvanized steel strand is a single stranded structure made of 19 galvanized steel wires with the same diameter twisted together. One wire is located in the center, and the remaining 18 wires are twisted in two layers around the center wire.
Key Specifications
| Product Name | Galvanized Steel Strand |
|---|---|
| Steel Grade | 45#/50#/60#/70# High Carbon Steel |
| Structure | 1*19 |
| Diameter | 4.2-14mm |

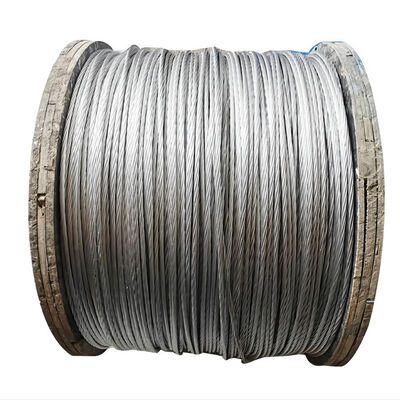

| Package | Wooden Reel/ Iron Reel/ Roll |
| Application | Messenger Wire,Barrier Cable,Structure Cable |
Trade Information
Brand Name
CSW
Model Number
CSW-GA-1*19
Place of Origin
Shandong, China
Certification
SGS, ISO, CE, ROHS
Standard Packaging
500-3000m/Reel
Delivery Time
5-10 Days
Payment Terms
T/T
Supply Ability
70000 Tons/Year
Need this exact spec?Factory quote within 24 hours — send diameter, quantity & destination port.
Inquire Now
WhatsApp
Product Introduction
The 1X19 galvanized steel strand is a single stranded structure made of 19 galvanized steel wires with the same diameter twisted together. One wire is located in the center, and the remaining 18 wires are twisted in two layers around the center wire. It is a tightly structured and high-strength metal wire.
Product Advantages
- High strength: The twisted structure of 19 steel wires allows it to withstand high tensile forces, with a tensile strength typically between 1270MPa and 1670MPa, making it suitable for heavy-duty scenarios.
- Corrosion resistance: The galvanized layer on the surface can isolate air, moisture, and steel wire from contact, greatly improving its corrosion resistance and prolonging its service life in outdoor, humid, or corrosive environments.
- Low ductility: The single stranded structure determines its low elongation, small deformation under stress, and the ability to maintain good structural stability.
- Easy to bend: Compared to multi strand steel strands, it has moderate flexibility and can meet certain bending requirements without breaking due to excessive bending.
Applications
Power industry: As a ground wire (lightning protection wire) for overhead power lines, it uses high-strength and corrosion-resistant characteristics to protect transmission lines. Communication industry: Used for supporting communication base stations and overhead communication lines to ensure the stability of the lines. Construction engineering: Used as reinforcement in prestressed structures of large buildings and bridges, or in scenarios such as curtain wall suspension and heavy lifting.
Security: Making protective nets, fences, etc., with both protection and durability.
Certifications
Our steel wire rope meets international production standards and has obtained multiple certifications such as: SGS CE ISO
Technical Data — Diameter, Weight & Breaking Load
| Structure | Wire Diameter (mm) | Wire Strand Diameter (mm) | Cross Section Area (mm²) | Nominal Tensile Strength/MPa | Nominal Tensile Strength/MPa | Nominal Tensile Strength/MPa | Nominal Tensile Strength/MPa | Nominal Tensile Strength/MPa | Nominal Tensile Strength/MPa | Approx. weight (kg/km) |
|---|---|---|---|---|---|---|---|---|---|---|
| 1270 | 1370 | 1470 | 1570 | 1670 | ||||||
| 1x19 | 1.60 | 8.00 | 38.20 | 43.66 | 47.10 | 50.54 | 53.98 | 57.41 | 304.00 | |
| 1x19 | 1.80 | 9.00 | 48.35 | 55.26 | 59.62 | 63.97 | 68.32 | 72.67 | 385.00 | |
| 1x19 | 2.00 | 10.00 | 56.69 | 68.23 | 73.60 | 78.97 | 84.34 | 89.71 | 475.00 | |
| 1x19 | 2.20 | 11.00 | 72.20 | 82.58 | 89.00 | 95.58 | 102.09 | 108.52 | 569.00 | |
| 1x19 | 2.30 | 11.50 | 78.94 | 90.23 | 97.33 | 104.40 | 111.50 | 118.65 | 628.00 | |
| 1x19 | 2.60 | 13.00 | 100.90 | 115.30 | 124.40 | 133.50 | 142.60 | 151.65 | 803.00 | |
| 1x19 | 2.90 | 14.50 | 125.50 | 143.40 | 154.70 | 166.00 | 177.30 | 188.63 | 999.00 | |
| 1x19 | 3.20 | 16.00 | 152.80 | 174.70 | 188.40 | 202.20 | 215.90 | 229.66 | 1220.00 | |
| 1x19 | 3.50 | 17.50 | 182.80 | 208.90 | 225.40 | 241.80 | 258.30 | 274.75 | 1460.00 | |
| 1x19 | 4.00 | 20.00 | 238.80 | 272.90 | 294.40 | 315.90 | 337.40 | 358.92 | 1900.00 |
| Standard Cross-Sectional Area (mm²) | Wire Diameter (mm) | Diameter (mm) | Actual Cross-Sectional Area (mm²) | Minimum Breaking Force (kg) | Weight (kg/km) |
|---|---|---|---|---|---|
| 25 | 7/2.2 | 6.6 | 26.6 | 2630 | 228 |
| 35 | 7/2.6 | 7.8 | 37.2 | 3680 | 318 |
| 50 | 7/3.0 | 9 | 49.5 | 4900 | 424 |
| 50(1) | 19/1.8 | 9 | 48.32 | 4900 | 411 |
| 70 | 19/2.2 | 11 | 72.2 | 7150 | 615 |
| 95 | 19/2.5 | 12.5 | 93.2 | 9230 | 795 |
| 100 | 19/2.6 | 13 | 100.8 | 11090 | 859 |
| 120 | 19/2.8 | 13 | 116.9 | 11600 | 995 |
| 135 | 19/3.0 | 13 | 134.24 | 16200 | 1144 |
Values are typical mill data. Request the full mill test certificate for your exact specification.
