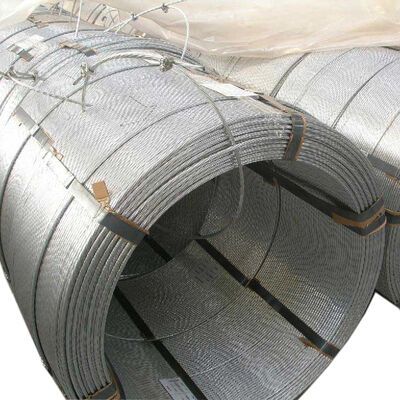

1x19 Galvanized Steel Wire Strand 6.0mm 8.0mm For Agricultural Greenhouses
1x19 galvanized steel strand belongs to the single twisted structure of steel strand, which is made by twisting 19 galvanized steel wires with the same diameter in one go. One steel wire is located in the center, and the remaining 18 steel wires are evenly arranged in a layer around the central steel wire.
Key Specifications
| Product Name | Galvanized Steel Wire Strand |
|---|---|
| Steel Grade | 45#/50#/60#/70# High Carbon Steel |
| Structure | 1*19 |
| Diameter | 4.2-14mm |

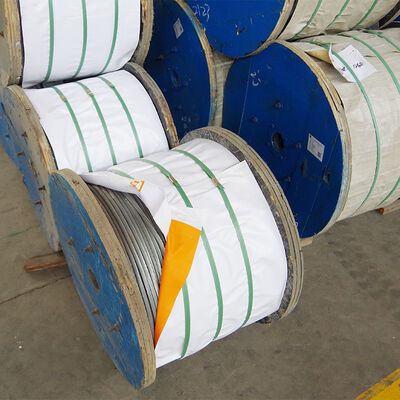

| Package | Wooden Reel/ Iron Reel/ Roll |
| Application | Messenger Wire,Barrier Cable,Structure Cable |
Trade Information
Brand Name
CSW
Model Number
CSW-GA-1*19
Place of Origin
Shandong, China
Certification
SGS, ISO, CE, ROHS
Standard Packaging
500-3000m/Reel
Delivery Time
5-10 Days
Payment Terms
T/T
Supply Ability
70000 Tons/Year
Need this exact spec?Factory quote within 24 hours — send diameter, quantity & destination port.
Inquire Now
WhatsApp
Product Introduction

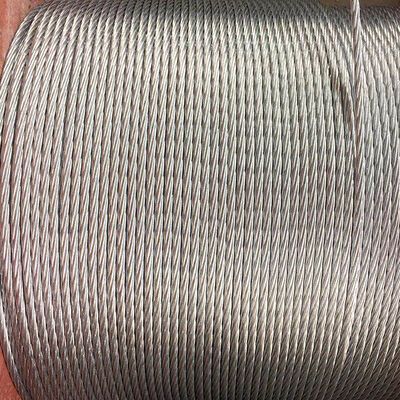

1x19 galvanized steel strand belongs to the single twisted structure of steel strand, which is made by twisting 19 galvanized steel wires with the same diameter in one go. One steel wire is located in the center, and the remaining 18 steel wires are evenly arranged in a layer around the central steel wire. It is a commonly used specification in galvanized steel strands, balancing strength and flexibility.
Product Advantages
- High strength: The twisted structure of 19 steel wires allows it to withstand high tensile forces, with a tensile strength typically between 1270MPa and 1960MPa, making it suitable for heavy-duty scenarios.
- Corrosion resistance: The galvanized layer on the surface can isolate air, moisture, and steel wire from contact, greatly improving its service life in harsh environments such as humidity, acidity, and alkalinity.
- It is widely used in marine and outdoor engineering.
- Low relaxation: The characteristics of the single twist structure result in low stress relaxation and stable tension performance under long-term stress conditions.
- It is commonly used in scenarios such as tower cables and anchor cables that require long-term stress.
- Better flexibility: Compared to multi twisted steel strands, the 1x19 structure has high strength and a certain degree of bending ability, making it easy to install and construct.
Applications
Power communication: as the guy wire for transmission towers and the fixed cable for communication towers, it provides stable support and tension for the towers. Construction engineering: anchor cables for slope protection, prestressed structures for large venues, and auxiliary cables for bridges. Transportation facilities: tensioning cables for highway guardrails, mooring cables for ports and docks, etc.
Outdoor security: as a fixed rope for large billboards and a supporting component for mountain cableways.
Certifications
Our steel wire rope meets international production standards and has obtained multiple certifications such as SGS, CE, ISO, etc.
Technical Data — Diameter, Weight & Breaking Load
| Structure | Wire Diameter (mm) | Wire Strand Diameter (mm) | Cross Section Area (mm²) | Nominal Tensile Strength (MPa) | Approx. weight (kg/km) | Min breaking force (KN) |
|---|---|---|---|---|---|---|
| 1x19 | 1.60 | 8.00 | 38.20 | 1270-1670 | 304.00 | 43.66-57.41 |
| 1x19 | 1.80 | 9.00 | 48.35 | 1270-1670 | 385.00 | 55.26-72.67 |
| 1x19 | 2.00 | 10.00 | 56.69 | 1270-1670 | 475.00 | 68.23-89.71 |
| 1x19 | 2.20 | 11.00 | 72.20 | 1270-1670 | 569.00 | 82.58-108.52 |
| 1x19 | 2.30 | 11.50 | 78.94 | 1270-1670 | 628.00 | 90.23-118.65 |
| 1x19 | 2.60 | 13.00 | 100.90 | 1270-1670 | 803.00 | 115.30-151.65 |
| 1x19 | 2.90 | 14.50 | 125.50 | 1270-1670 | 999.00 | 143.40-188.63 |
| 1x19 | 3.20 | 16.00 | 152.80 | 1270-1670 | 1220.00 | 174.70-229.66 |
| 1x19 | 3.50 | 17.50 | 182.80 | 1270-1670 | 1460.00 | 208.90-274.75 |
| 1x19 | 4.00 | 20.00 | 238.80 | 1270-1670 | 1900.00 | 272.90-358.92 |
| Standard Cross-Sectional Area (mm²) | Wire Diameter (mm) | Diameter (mm) | Actual Cross-Sectional Area (mm²) | Minimum Breaking Force (kg) | Weight (kg/km) |
|---|---|---|---|---|---|
| 25 | 7/2.2 | 6.6 | 26.6 | 2630 | 228 |
| 35 | 7/2.6 | 7.8 | 37.2 | 3680 | 318 |
| 50 | 7/3.0 | 9 | 49.5 | 4900 | 424 |
| 50(1) | 19/1.8 | 9 | 48.32 | 4900 | 411 |
| 70 | 19/2.2 | 11 | 72.2 | 7150 | 615 |
| 95 | 19/2.5 | 12.5 | 93.2 | 9230 | 795 |
| 100 | 19/2.6 | 13 | 100.8 | 11090 | 859 |
| 120 | 19/2.8 | 13 | 116.9 | 11600 | 995 |
| 135 | 19/3.0 | 13 | 134.24 | 16200 | 1144 |
Values are typical mill data. Request the full mill test certificate for your exact specification.
