1x19 Hot Dipped Galvanized Steel Strand 4.2mm 5.0mm 6.0mm Carbon Steel Drawn Wire Strand
1x19 galvanized steel strand belongs to single twisted structural steel strand, which is made up of one central steel wire and 18 steel wires surrounding it, with a tight and regular overall structure. The galvanized layer is a zinc protective layer formed on the surface of steel wire through hot-dip or electroplating processes, which can greatly enhance the corrosion resistance of steel strands.
Key Specifications
| Product Name | Galvanized Steel Strand |
|---|---|
| Steel Grade | 45#/50#/60#/70# High Carbon Steel |
| Structure | 1*19 |
| Diameter | 4.2-14mm |

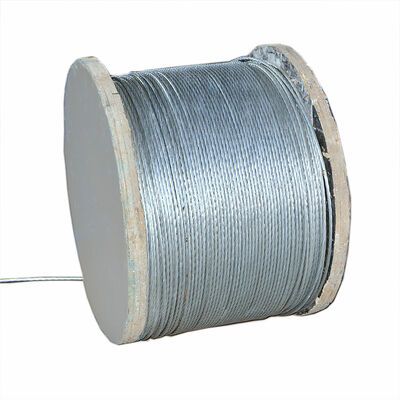

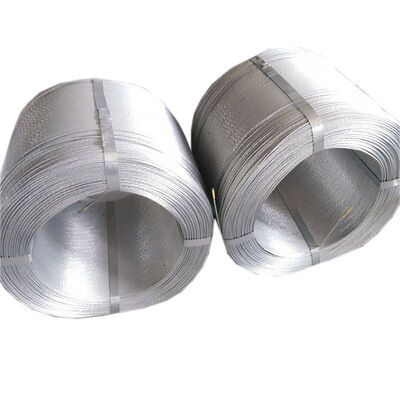

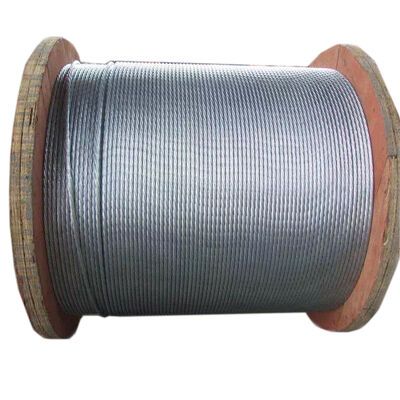

| Package | Wooden Reel/ Iron Reel/ Roll |
| Application | Messenger Wire,Barrier Cable,Structure Cable |
Trade Information
Brand Name
CSW
Model Number
CSW-GA-1*19
Place of Origin
Shandong, China
Certification
SGS, ISO, CE, ROHS
Standard Packaging
500-3000m/Reel
Delivery Time
5-10 Days
Payment Terms
T/T
Supply Ability
70000 Tons/Year
Need this exact spec?Factory quote within 24 hours — send diameter, quantity & destination port.
Inquire Now
WhatsApp
Product Introduction
1x19 galvanized steel strand belongs to single twisted structural steel strand, which is made up of one central steel wire and 18 steel wires surrounding it, with a tight and regular overall structure. The galvanized layer is a zinc protective layer formed on the surface of steel wire through hot-dip or electroplating processes, which can greatly enhance the corrosion resistance of steel strands.
Product Advantages
- High strength: The single twist structure ensures even force distribution on the steel wire, with a tensile strength of up to 1270MPa-1670MPa, suitable for heavy-duty and high-strength tensile scenarios High rigidity: Compared to multi strand twisted steel wire ropes, 1x19 structured steel strands have stronger rigidity, are less prone to deformation, and can maintain a straight line state Corrosion resistance: The galvanized layer isolates the steel wire from contact with air and moisture, making it suitable for long-term use in humid, outdoor, and even mildly corrosive environments Low relaxation: Good structural stability, minimal stress relaxation after long-term stress, able to maintain long-lasting tension
Applications
Power industry: As the ground wire and guy wire of overhead transmission lines, it can withstand tension while resisting outdoor corrosion Construction engineering: Used for prestressed structures of large venues and bridges, as well as cable components of curtain walls and steel structures Communication: Supporting components for communication tower cables and overhead optical cables Transportation: Lifting cables for port cranes and load-bearing cables for cableways
Certifications
Our steel wire rope meets international production standards and has obtained multiple certifications such as SGS, CE, ISO, etc.
Technical Data — Diameter, Weight & Breaking Load
| YB/T 5004-2012 Standard | YB/T 5004-2012 Standard | YB/T 5004-2012 Standard | YB/T 5004-2012 Standard | YB/T 5004-2012 Standard | YB/T 5004-2012 Standard | YB/T 5004-2012 Standard | YB/T 5004-2012 Standard | ||
|---|---|---|---|---|---|---|---|---|---|
| Structure | Wire Diameter (mm) | Wire Strand Diameter (mm) | Cross Section Area (mm²) | Nominal Tensile Strength/MPa | Nominal Tensile Strength/MPa | Nominal Tensile Strength/MPa | Nominal Tensile Strength/MPa | Approx. weight (kg/km) | |
| 1270 | 1370 | 1470 | 1570 | 1670 | |||||
| 1x19 | 1.60 | 8.00 | 38.20 | 43.66 | 47.10 | 50.54 | 53.98 | 57.41 | 304.00 |
| 1x19 | 1.80 | 9.00 | 48.35 | 55.26 | 59.62 | 63.97 | 68.32 | 72.67 | 385.00 |
| 1x19 | 2.00 | 10.00 | 56.69 | 68.23 | 73.60 | 78.97 | 84.34 | 89.71 | 475.00 |
| 1x19 | 2.20 | 11.00 | 72.20 | 82.58 | 89.00 | 95.58 | 102.09 | 108.52 | 569.00 |
| 1x19 | 2.30 | 11.50 | 78.94 | 90.23 | 97.33 | 104.40 | 111.50 | 118.65 | 628.00 |
| 1x19 | 2.60 | 13.00 | 100.90 | 115.30 | 124.40 | 133.50 | 142.60 | 151.65 | 803.00 |
| 1x19 | 2.90 | 14.50 | 125.50 | 143.40 | 154.70 | 166.00 | 177.30 | 188.63 | 999.00 |
| 1x19 | 3.20 | 16.00 | 152.80 | 174.70 | 188.40 | 202.20 | 215.90 | 229.66 | 1220.00 |
| 1x19 | 3.50 | 17.50 | 182.80 | 208.90 | 225.40 | 241.80 | 258.30 | 274.75 | 1460.00 |
| 1x19 | 4.00 | 20.00 | 238.80 | 272.90 | 294.40 | 315.90 | 337.40 | 358.92 | 1900.00 |
| YB 258-64 Standard | YB 258-64 Standard | YB 258-64 Standard | YB 258-64 Standard | YB 258-64 Standard | YB 258-64 Standard |
|---|---|---|---|---|---|
| Standard Cross-Sectional Area (mm²) | Wire Diameter (mm) | Diameter (mm) | Actual Cross-Sectional Area (mm²) | Minimum Breaking Force (kg) | Weight (kg/km) |
| 25 | 7/2.2 | 6.6 | 26.6 | 2630 | 228 |
| 35 | 7/2.6 | 7.8 | 37.2 | 3680 | 318 |
| 50 | 7/3.0 | 9 | 49.5 | 4900 | 424 |
| 50(1) | 19/1.8 | 9 | 48.32 | 4900 | 411 |
| 70 | 19/2.2 | 11 | 72.2 | 7150 | 615 |
| 95 | 19/2.5 | 12.5 | 93.2 | 9230 | 795 |
| 100 | 19/2.6 | 13 | 100.8 | 11090 | 859 |
| 120 | 19/2.8 | 13 | 116.9 | 11600 | 995 |
| 135 | 19/3.0 | 13 | 134.24 | 16200 | 1144 |
Values are typical mill data. Request the full mill test certificate for your exact specification.
