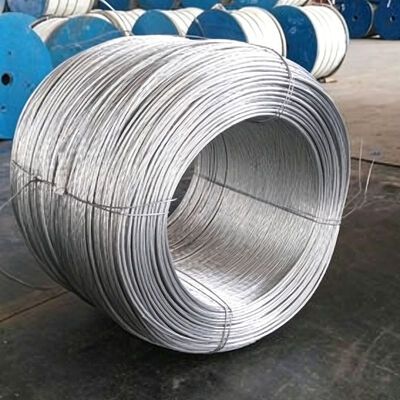

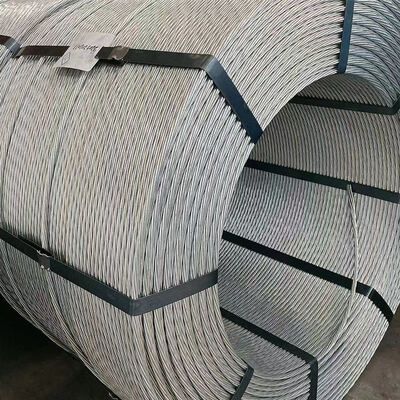

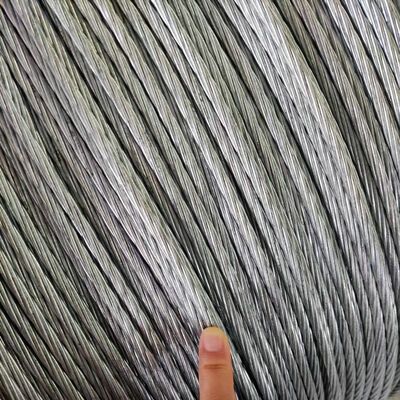

Hot Dipped Galvanised Stay Wire 3.0mm 4.2mm 5.0mm 6.0mm For Agricultural Greenhouse
Structure: 1*7 · Diameter: 2.1-12mm
Details
Galvanized Steel Wire Strand Price 1x7 Galvanized Steel Strand Galvanized Stay Steel Wire Strand 3.0mm 4.2mm 5.0mm 6.0mm
Key Specifications
| Product Name | Galvanized Steel Strand |
|---|---|
| Steel Grade | 45#/50#/60#/70# High Carbon Steel |
| Structure | 1*7 |
| Diameter | 2.1-12mm |
| Package | Wooden Reel/ Iron Reel/ Roll |
| Application | Messenger Wire,Barrier Cable,Structure Cable |
Trade Information
Brand Name
CSW
Model Number
CSW-GA-1*7
Place of Origin
Shandong, China
Certification
SGS, ISO, CE, ROHS
Standard Packaging
500-3000m/Reel
Delivery Time
5-10 Days
Payment Terms
T/T
Supply Ability
70000 Tons/Year
Need this exact spec?Factory quote within 24 hours — send diameter, quantity & destination port.
Inquire Now
WhatsApp
Technical Data — Diameter, Weight & Breaking Load
| Structure | Wire Diameter (mm) | Wire Strand Diameter (mm) | Cross Section Area (mm²) | Nominal Tensile Strength/MPa | Nominal Tensile Strength/MPa | Nominal Tensile Strength/MPa | Nominal Tensile Strength/MPa | Nominal Tensile Strength/MPa | Approx. weight (kg/km) |
|---|---|---|---|---|---|---|---|---|---|
| 1270 | 1370 | 1470 | 1570 | 1670 | |||||
| 1x7 | 1.00 | 3.00 | 5.50 | 6.43 | 6.93 | 7.44 | 7.94 | 8.45 | 43.70 |
| 1x7 | 1.20 | 3.60 | 7.92 | 9.25 | 9.98 | 10.71 | 11.44 | 12.17 | 62.90 |
| 1x7 | 1.40 | 4.20 | 10.78 | 12.60 | 13.59 | 14.58 | 15.57 | 16.56 | 85.60 |
| 1x7 | 1.60 | 4.80 | 14.07 | 16.44 | 17.73 | 19.03 | 20.32 | 21.62 | 112.00 |
| 1x7 | 1.80 | 5.40 | 17.81 | 20.81 | 22.45 | 24.09 | 25.72 | 27.36 | 141.00 |
| 1x7 | 2.00 | 6.00 | 21.99 | 25.69 | 27.72 | 29.74 | 31.76 | 33.79 | 175.00 |
| 1x7 | 2.20 | 6.60 | 26.61 | 31.10 | 33.55 | 36.00 | 38.45 | 40.88 | 210.00 |
| 1x7 | 2.60 | 7.80 | 37.17 | 43.43 | 46.85 | 50.27 | 53.69 | 57.11 | 295.00 |
| 1x7 | 3.00 | 9.00 | 49.50 | 57.86 | 62.42 | 66.98 | 71.54 | 76.05 | 411.90 |
| 1x7 | 3.20 | 9.60 | 56.30 | 65.78 | 70.46 | 76.14 | 81.32 | 86.50 | 447.00 |
| 1x7 | 3.50 | 10.50 | 67.35 | 78.69 | 84.89 | 91.08 | 97.28 | 103.48 | 535.00 |
| 1x7 | 3.80 | 11.40 | 79.39 | 92.76 | 100.10 | 107.40 | 114.70 | 121.97 | 630.00 |
| 1x7 | 4.00 | 12.00 | 87.96 | 102.80 | 110.90 | 119.00 | 127.00 | 135.14 | 698.00 |
Values are typical mill data. Request the full mill test certificate for your exact specification.
