Hot Dipped Galvanised Stay Wire 3.0mm 4.2mm 5.0mm 6.0mm For Agricultural Greenhouse
Structure: 1*7 · Diameter: 2.1-12mm
Details

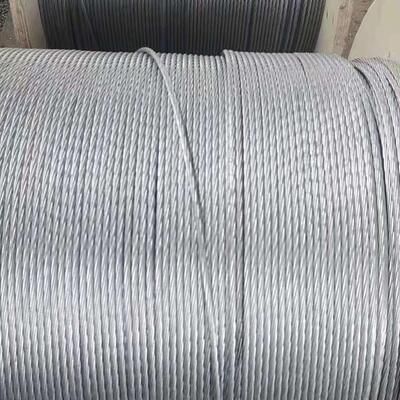

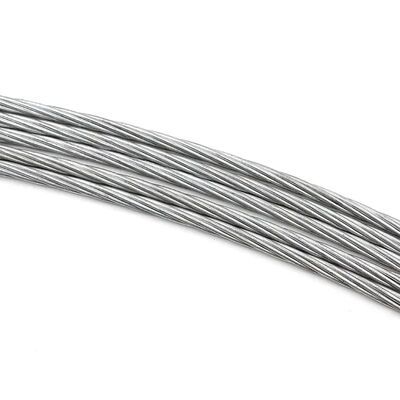

Hot Dipped Galvanized Steel Wire Rope 4.2mm 6.0mm 8.0mm Steel Wire Welded Straight And Twisted Strands
1x7 galvanized steel strand is a single stranded structural steel strand made up of 7 steel wires twisted together. All steel wire surfaces have undergone hot-dip galvanizing treatment, making it a typical category of single stranded steel strand.
Key Specifications
| Product Name | Hot Dipped Galvanized Steel Wire Rope |
|---|---|
| Steel Grade | 45#/50#/60#/70# High Carbon Steel |
| Structure | 1*7 |
| Diameter | 2.1-12mm |

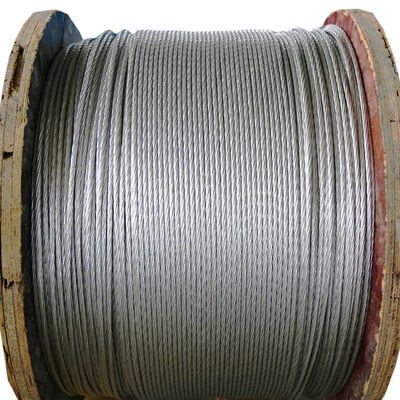

| Package | Wooden Reel/ Iron Reel/ Roll |
| Application | Messenger Wire,Barrier Cable,Structure Cable |
Trade Information
Brand Name
CSW
Model Number
CSW-GA-1*7
Place of Origin
Shandong, China
Certification
SGS, ISO, CE, ROHS
Standard Packaging
500-3000m/Reel
Delivery Time
5-10 Days
Payment Terms
T/T
Supply Ability
70000 Tons/Year
Need this exact spec?Factory quote within 24 hours — send diameter, quantity & destination port.
Inquire Now
WhatsApp
Product Introduction
1x7 galvanized steel strand is a single stranded structural steel strand made up of 7 steel wires twisted together. All steel wire surfaces have undergone hot-dip galvanizing treatment, making it a typical category of single stranded steel strand. Among them, "1" represents the number of twisted layers, and "7" represents the total number of steel wires contained in a single twisted wire, making it one of the most basic steel strand structures.
Product Advantages
- Strong structural stability: Seven steel wires are symmetrically twisted with one at the center and six at the periphery.
- When subjected to stress, the stress distribution is uniform, making it less prone to torsional deformation and suitable for long-term constant tensile strength.
- Excellent anti-corrosion performance: The thickness of hot-dip galvanized coating can reach 20-60 μm, which can effectively isolate air, moisture and steel wire substrate from contact.
- Its service life can be increased by 3-5 times in outdoor humid and saline alkali environments.
- High tensile strength: The tensile strength of a single wire can reach 1270-1670MPa, and the breaking force of the entire stranded wire is about 15% higher than that of a single steel wire of the same diameter, balancing flexibility and load-bearing capacity.
- Installation convenience: The single strand structure has moderate flexibility and does not require complex pre tensioning treatment.
- It can be directly wound and fixed, reducing construction difficulty.
Applications
In the field of power communication, as a fixed device for overhead ground wires and cables, it is used for structural reinforcement of transmission towers and communication base stations. In the field of agriculture, forestry and water conservancy: orchard greenhouse support rope, river embankment protection net tension rope.
Certifications
Our steel wire rope meets international production standards and has obtained multiple certifications such as SGS, CE, ISO, etc.
Technical Data — Diameter, Weight & Breaking Load
| Structure | Wire Diameter (mm) | Wire Strand Diameter (mm) | Cross Section Area (mm²) | Nominal Tensile Strength/MPa | Approx. weight (kg/km) |
|---|---|---|---|---|---|
| 1x7 | 1.00 | 3.00 | 5.50 | 6.43-8.45 | 43.70 |
| 1x7 | 1.20 | 3.60 | 7.92 | 9.25-12.17 | 62.90 |
| 1x7 | 1.40 | 4.20 | 10.78 | 12.60-16.56 | 85.60 |
| 1x7 | 1.60 | 4.80 | 14.07 | 16.44-21.62 | 112.00 |
| 1x7 | 1.80 | 5.40 | 17.81 | 20.81-27.36 | 141.00 |
| 1x7 | 2.00 | 6.00 | 21.99 | 25.69-33.79 | 175.00 |
| 1x7 | 2.20 | 6.60 | 26.61 | 31.10-40.88 | 210.00 |
| 1x7 | 2.60 | 7.80 | 37.17 | 43.43-57.11 | 295.00 |
| 1x7 | 3.00 | 9.00 | 49.50 | 57.86-76.05 | 411.90 |
| 1x7 | 3.20 | 9.60 | 56.30 | 65.78-86.50 | 447.00 |
| 1x7 | 3.50 | 10.50 | 67.35 | 78.69-103.48 | 535.00 |
| 1x7 | 3.80 | 11.40 | 79.39 | 92.76-121.97 | 630.00 |
| 1x7 | 4.00 | 12.00 | 87.96 | 102.80-135.14 | 698.00 |
| Standard Cross-Sectional Area (mm²) | Wire Diameter (mm) | Diameter (mm) | Actual Cross-Sectional Area (mm²) | Minimum Breaking Force (kg) | Weight (kg/km) |
|---|---|---|---|---|---|
| 25 | 7/2.2 | 6.6 | 26.6 | 2630 | 228 |
| 35 | 7/2.6 | 7.8 | 37.2 | 3680 | 318 |
| 50 | 7/3.0 | 9 | 49.5 | 4900 | 424 |
| 50(1) | 19/1.8 | 9 | 48.32 | 4900 | 411 |
| 70 | 19/2.2 | 11 | 72.2 | 7150 | 615 |
| 95 | 19/2.5 | 12.5 | 93.2 | 9230 | 795 |
| 100 | 19/2.6 | 13 | 100.8 | 11090 | 859 |
| 120 | 19/2.8 | 13 | 116.9 | 11600 | 995 |
| 135 | 19/3.0 | 13 | 134.24 | 16200 | 1144 |
| Steel Strand | Cross Section Area (mm²) | Minimum Breaking Force Of Steel Strand/KN | Approx. weight KG/100M |
|---|---|---|---|
| 7x0.3 | 0.90 | 0.49 | 0.40 |
| 7x0.33 | 1.00 | 0.60 | 0.49 |
| 7x0.4 | 1.20 | 0.88 | 0.71 |
| 7x0.5 | 1.50 | 2.10 | 1.11 |
| 7x0.7 | 2.10 | 4.13 | 2.18 |
| 7x0.8 | 2.40 | 5.41 | 2.85 |
| 7x0.9 | 2.70 | 6.84 | 3.60 |
| 7x1.0 | 3.00 | 7.99 | 4.45 |
Values are typical mill data. Request the full mill test certificate for your exact specification.
