Standard Gj70 Hot Dip Galvanized Steel Strand 1x19 Galvanised Stay Wire 8mm 10mm 12mm

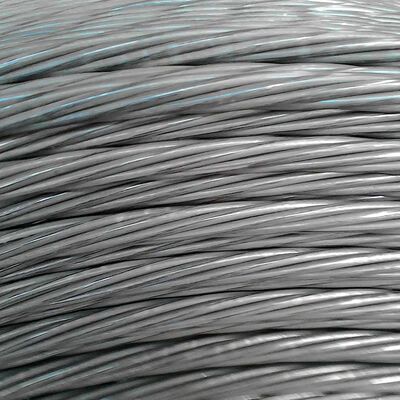

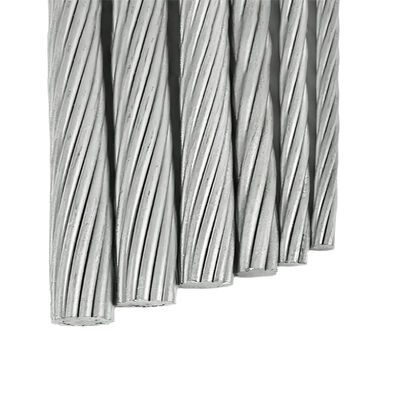

The 1x19 galvanized steel strand features a robust structure composed of 19 steel wires arranged in layers of 1+6+12. This configuration includes 1 central steel wire, 6 wires wrapped around the inner layer, and 12 additional wires wrapped around the outer layer, providing an optimal balance of strength and flexibility.
Key Specifications
| Product Name | Galvanized Steel Strand |
|---|---|
| Steel Grade | 45#/50#/60#/70# High Carbon Steel |
| Structure | 1*19 |

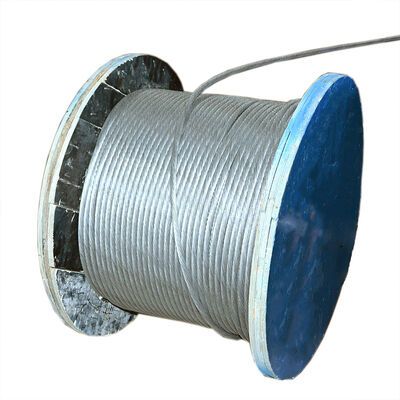

| Package | Wooden Reel/ Iron Reel/ Roll |
| Diameter | 4.2-14mm |
| Application | Messenger Wire,Barrier Cable,Structure Cable |
Trade Information
Brand Name
CSW
Model Number
CSW-GA-1*19
Place of Origin
Shandong, China
Certification
SGS, ISO, CE, ROHS
Standard Packaging
500-3000m/Reel
Delivery Time
5-10 Days
Payment Terms
T/T
Supply Ability
70000 Tons/Year
Need this exact spec?Factory quote within 24 hours — send diameter, quantity & destination port.
Inquire Now
WhatsApp
Product Introduction
The 1x19 galvanized steel strand features a robust structure composed of 19 steel wires arranged in layers of 1+6+12. This configuration includes 1 central steel wire, 6 wires wrapped around the inner layer, and 12 additional wires wrapped around the outer layer, providing an optimal balance of strength and flexibility. Available in multiple strength grades to meet various load requirements: 1270MPa, 1370MPa, 1470MPa, and 1570MPa.
Product Advantages
- Strong corrosion resistance: The galvanized layer forms a dense protective barrier that effectively resists oxidation and corrosion, extending service life, especially in humid and highly corrosive environments.
- High structural strength: The twisted structure of 19 steel wires provides excellent tensile strength with a breaking force coefficient of 1.11, capable of withstanding large loads.
- Excellent durability: Suitable for long-term use both indoors and outdoors, resistant to rust and damage, with strong structural stability.
- Construction convenience: Combines good plasticity and weldability, adaptable to various construction scenarios, and easy to install efficiently.
Applications
s Power Engineering: Used as reinforcing core or ground wire for overhead transmission lines, ensuring stability and reliability of electrical systems. Bridge Construction: Serves as the main load-bearing component in prestressed concrete bridges, improving structural crack resistance and bearing capacity. Port Terminals: Employed for critical components including mooring facilities, loading and unloading equipment, ship anchor chains, and rigging systems.
Product Certification Our steel wire rope meets international production standards and holds multiple certifications including SGS, CE, ISO, and others.
Technical Data — Diameter, Weight & Breaking Load
| Structure | Wire Diameter (mm) | Wire Strand Diameter (mm) | Cross Section Area (mm²) | Nominal Tensile Strength/MPa | Nominal Tensile Strength/MPa | Nominal Tensile Strength/MPa | Nominal Tensile Strength/MPa | Nominal Tensile Strength/MPa | Nominal Tensile Strength/MPa | Approx. weight (kg/km) |
|---|---|---|---|---|---|---|---|---|---|---|
| 1270 | 1370 | 1470 | 1570 | 1670 | ||||||
| 1x19 | 1.60 | 8.00 | 38.20 | 43.66 | 47.10 | 50.54 | 53.98 | 57.41 | 304.00 | |
| 1x19 | 1.80 | 9.00 | 48.35 | 55.26 | 59.62 | 63.97 | 68.32 | 72.67 | 385.00 | |
| 1x19 | 2.00 | 10.00 | 56.69 | 68.23 | 73.60 | 78.97 | 84.34 | 89.71 | 475.00 | |
| 1x19 | 2.20 | 11.00 | 72.20 | 82.58 | 89.00 | 95.58 | 102.09 | 108.52 | 569.00 | |
| 1x19 | 2.30 | 11.50 | 78.94 | 90.23 | 97.33 | 104.40 | 111.50 | 118.65 | 628.00 | |
| 1x19 | 2.60 | 13.00 | 100.90 | 115.30 | 124.40 | 133.50 | 142.60 | 151.65 | 803.00 | |
| 1x19 | 2.90 | 14.50 | 125.50 | 143.40 | 154.70 | 166.00 | 177.30 | 188.63 | 999.00 | |
| 1x19 | 3.20 | 16.00 | 152.80 | 174.70 | 188.40 | 202.20 | 215.90 | 229.66 | 1220.00 | |
| 1x19 | 3.50 | 17.50 | 182.80 | 208.90 | 225.40 | 241.80 | 258.30 | 274.75 | 1460.00 | |
| 1x19 | 4.00 | 20.00 | 238.80 | 272.90 | 294.40 | 315.90 | 337.40 | 358.92 | 1900.00 |
| Standard Cross-Sectional Area (mm²) | Wire Diameter (mm) | Diameter (mm) | Actual Cross-Sectional Area (mm²) | Minimum Breaking Force (kg) | Weight (kg/km) |
|---|---|---|---|---|---|
| 25 | 7/2.2 | 6.6 | 26.6 | 2630 | 228 |
| 35 | 7/2.6 | 7.8 | 37.2 | 3680 | 318 |
| 50 | 7/3.0 | 9 | 49.5 | 4900 | 424 |
| 50(1) | 19/1.8 | 9 | 48.32 | 4900 | 411 |
| 70 | 19/2.2 | 11 | 72.2 | 7150 | 615 |
| 95 | 19/2.5 | 12.5 | 93.2 | 9230 | 795 |
| 100 | 19/2.6 | 13 | 100.8 | 11090 | 859 |
| 120 | 19/2.8 | 13 | 116.9 | 11600 | 995 |
| 135 | 19/3.0 | 13 | 134.24 | 16200 | 1144 |
Values are typical mill data. Request the full mill test certificate for your exact specification.
