6X36WS45 #, 60 #, 65 #, 70 # Carbon SteelBright/ Electric Galvanized/ Hot Dip Galvanized

8-20mm Galvanized Steel Wire Rope , 6x36WS Wire Rope For Tower Cranes

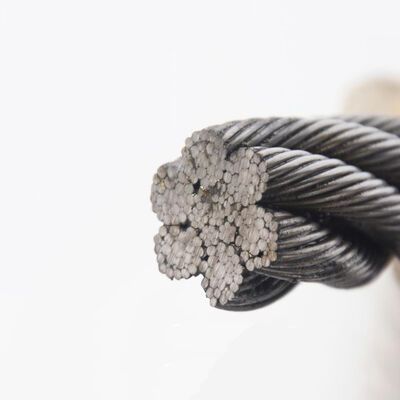

6x36WS is a composite structure steel wire rope composed of 6 outer strands, each containing 36 Seale style twisted steel wires with different thicknesses. It has high strength, wear resistance, and flexibility, and the steel core version has stronger anti-extrusion ability.

Key Specifications

Product Name	6x36WS Wire Rope
Surface	Bright/ Electric Galvanized/ Hot Dip Galvanized
Steel Grade	45 #, 60 #, 65 #, 70 # Carbon Steel
Structure	6X36WS
Diameter	8.0-20.0mm

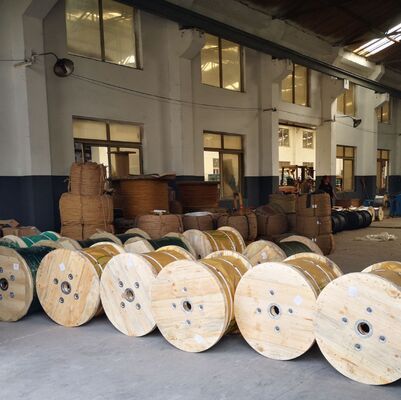

Package	Wooden Reel/ Iron Reel/ Plastic Reel/ Roll

Trade Information

Brand Name

CSW

Model Number

CSW-GA-6*36WS

Place of Origin

Shandong, China

Certification

SGS,CE,ISO,ROHS

Standard Packaging

500-3000m/ Reel

Delivery Time

5-10 Days

Payment Terms

T/T

Supply Ability

70000 Tons/ Year

Need this exact spec?Factory quote within 24 hours — send diameter, quantity & destination port.

Inquire Now WhatsApp

Product Introduction

Product Advantages

Balance between high strength and wear resistance: The outer thick steel wire enhances wear resistance, while the inner thin steel wire ensures flexibility and fatigue resistance Strong anti-extrusion ability: The composite strand structure makes the steel wire rope more evenly stressed between the drum and pulley, reducing local crushing Good fatigue resistance: The layered arrangement of steel wires reduces stress concentration and extends the service life under repeated bending Wide applicability: It can be adapted to different corrosive environments through surface treatments such as galvanizing and plastic coating Good elastic cushioning, capable of absorbing impact loads

Applications

Common uses of 6X36WS structure, 8.0-20.0mm diameter galvanized steel wire rope: Heavy lifting equipment such as port cranes and shore cranes Mine lifting and roadway transportation system Tower cranes for construction purposes Ship mooring and fishing equipment Cableway, cable car, amusement facilities

Certifications

Our steel wire rope meets international production standards and has obtained multiple certifications such as SGS, CE, ISO, etc.

Technical Data — Diameter, Weight & Breaking Load

Diameter mm	GB/T 20118-2006/GB8918-2006	GB/T 20118-2006/GB8918-2006	GB/T 20118-2006/GB8918-2006	EN 12385-4	EN 12385-4	EN 12385-4
	Min. Breaking Load (Kg) 1670N/mm²	Min. Breaking Load (Kg) 1770N/mm²	Approx. Weight (Kg/100m)	Min. Breaking Load (Kg) 1770N/mm²	Min. Breaking Load (Kg) 1960N/mm²	Approx. Weight (Kg/100m)
8	38.00	40.30	26.80	40.30	44.70	26.20
9	48.20	51.00	33.90	51.00	56.50	33.10
10	59.50	63.00	41.80	63.00	69.80	40.90
11	72.00	76.20	50.60	76.20	84.40	49.50
12	85.60	90.70	60.20	90.70	100.00	58.90
13	100.00	106.00	70.60	106.00	118.00	69.10
14	117.00	124.00	81.90	124.00	137.00	80.20
16	152.00	161.00	107.00	161.00	179.00	105.00
18	193.00	204.00	135.00	204.00	226.00	133.00
20	238.00	252.00	167.00	252.00	279.00	164.00
