9.53mm 12.7mm 15.2mm 7 Wire PC Steel Strand Low Relaxation For Bridge
SWRH 82B High Carbon Steel

9.53mm 12.7mm 15.2mm 7 Wire PC Steel Strand Low Relaxation For Bridge

Prestressed steel strand is a steel product made by twisting multiple high-strength steel wires. After stress relief treatment, it has extremely high tensile strength and flexibility.

Key Specifications

Product NamePC Steel Strand
Steel GradeSWRH 82B High Carbon Steel
StandardGB/T 5224-2014, ASTM A416, BS 5896, JIS G 3536
Tensile Strength1860Mpa
FeatrueLow Relaxation
Diameter9.53-21.8mm

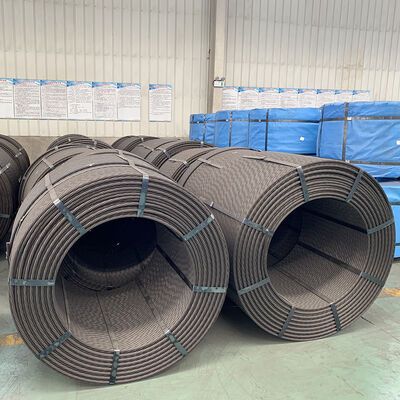

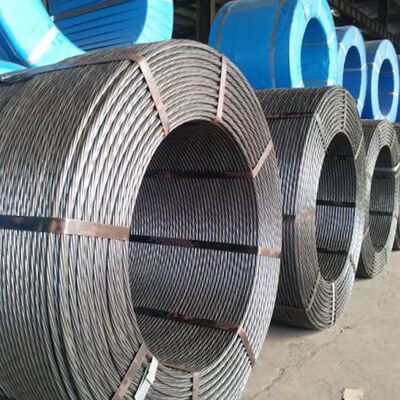

PackagePacking In Coils ,with PVC Film And Weaving Bag / Hessian Cloth
ApplicationBridges On Railway And Highway, Overhead Crane Beam, Rock-soil Anchoring Project

Trade Information

Brand Name
CSW
Model Number
CSW-PC-1*7
Place of Origin
Shandong, China
Certification
SGS, ISO, CE, ROHS
Standard Packaging
3.0-3.5Tons /Coil
Delivery Time
5-10 Days
Payment Terms
T/T
Supply Ability
70000 Tons/Year
Need this exact spec?Factory quote within 24 hours — send diameter, quantity & destination port.
Inquire Now WhatsApp

Product Introduction

Prestressed steel strand is a steel product made by twisting multiple high-strength steel wires. After stress relief treatment, it has extremely high tensile strength and flexibility. It is mainly used for prestressed tensioning of concrete structures to enhance the load-bearing capacity, crack resistance, and durability of the structure.

Product Advantages

  • High strength: The tensile strength is 3-5 times that of ordinary steel Low relaxation: minimal stress loss during long-term use, ensuring structural stability Corrosion resistance: The corrosion resistance can be improved through processes such as galvanizing and epoxy coating Easy to construct: Good flexibility, convenient for transportation and on-site tensioning operations

Applications

Bridge engineering: box girder and cable-stayed structures for large-span bridges Construction engineering: high-rise building floor slabs, prestressed concrete beams Transportation Engineering: Highway Slope Anchoring, Railway Sleepers Special engineering: nuclear power plant containment, water conservancy and hydropower dams

Certifications

Our steel wire rope meets international production standards and has obtained multiple certifications such as SGS, CE, ISO, etc.

Technical Data — Diameter, Weight & Breaking Load

GradeNominal Diameter (mm)Tolerance (mm)Area of Section (mm²)Weight of strand (kg/1000m)Minimum Breaking Load (KN)Minimum Load at 1% extension (KN)Elongation not less than (%)1000Hrs Relaxation Value Not More Than
2509.53±0.4151.6140589.080.13.52.5 (70% Initial Load)3.5 (80% Initial Load)
25011.1169.68548120.1108.13.52.5 (70% Initial Load)3.5 (80% Initial Load)
25012.7092.90730160.1144.13.52.5 (70% Initial Load)3.5 (80% Initial Load)
25015.24139.351094240.2216.23.52.5 (70% Initial Load)3.5 (80% Initial Load)
2709.53+0.65/-0.1554.84432102.392.13.52.5 (70% Initial Load)3.5 (80% Initial Load)
27011.1174.19582137.9124.13.52.5 (70% Initial Load)3.5 (80% Initial Load)
27012.798.71775183.7165.33.52.5 (70% Initial Load)3.5 (80% Initial Load)
27015.24140.001102260.7234.63.52.5 (70% Initial Load)3.5 (80% Initial Load)
Steel Strand StructureNominal Diameter Da /mmDia Tolerance /mmStrand Nominal Cross-Sectional Area Sn/mm²Approx. Weight per meter(g/m)Range(extened)% of core wire's diameter not less than
1x79.50 (9.53)+0.30/-0.1554.84302.5
1x711.10 (11.11)74.25822.5
1x712.7098.77752.5
1x715.20 (15.24)14011012.5
1x715.70+0.40/-0.1515011782.5
1x717.80 (17.78)191 (189.7)15002.5
1x718.9022017272.5
1x721.6028522372.5

Values are typical mill data. Request the full mill test certificate for your exact specification.
