9.53mm 12.7mm 15.2mm Prestressing Steel Strand ASTM A416 Grade 270 PC Steel Strand
Diameter: 9.53-21.8mm · Steel Grade: SWRH 82B High Carbon Steel
Details
ASTM A416 Grade 270 Prestressed Concrete Steel Strand 9.53mm 12.7mm 15.2mm
Prestressed steel strand is a high-strength steel cable composed of multiple steel wires twisted together. After stress relief treatment, it is used in prestressed concrete structures to enhance bearing capacity and reduce deformation.
Key Specifications
| Product Name | Prestressed Concrete Steel Strand |
|---|---|
| Steel Grade | SWRH 82B High Carbon Steel |
| Standard | GB/T 5224-2014, ASTM A416, BS 5896, JIS G 3536 |
| Featrue | Low Relaxation |
| Diameter | 9.53mm-21.8mm |

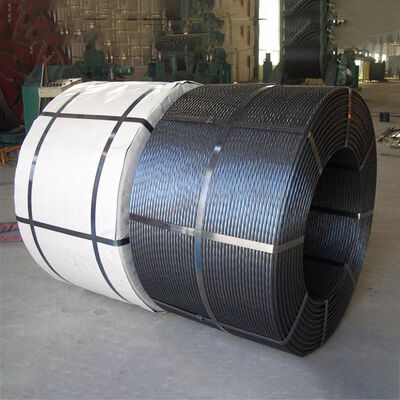

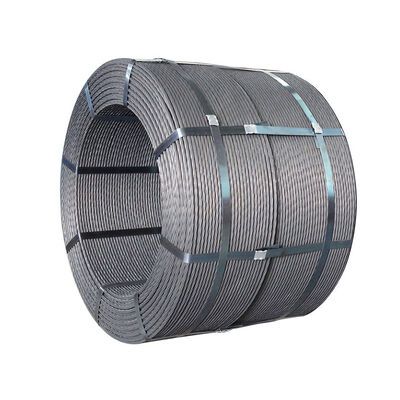

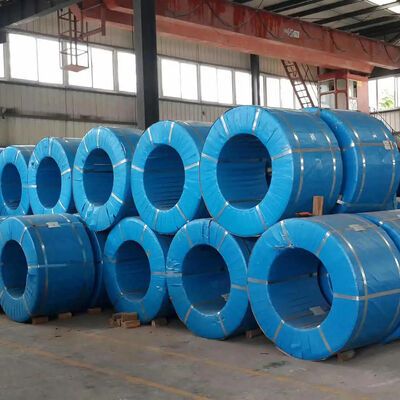

| Package | Packing In Coils ,with PVC Film And Weaving Bag / Hessian Cloth |
| Tensile Strength | 1860Mpa |
| Application | Bridges On Railway And Highway, Overhead Crane Beam, Rock-soil Anchoring Project |
Trade Information
Brand Name
CSW
Model Number
CSW-PC-1*7
Place of Origin
Shandong, China
Certification
SGS, ISO, CE, ROHS
Standard Packaging
3.0-3.5Tons /Coil
Delivery Time
5-10 Days
Payment Terms
T/T
Supply Ability
70000 Tons/Year
Need this exact spec?Factory quote within 24 hours — send diameter, quantity & destination port.
Inquire Now
WhatsApp
Product Introduction
Prestressed steel strand is a high-strength steel cable composed of multiple steel wires twisted together. After stress relief treatment, it is used in prestressed concrete structures to enhance bearing capacity and reduce deformation. With a common tensile strength grade of 1860 MPa, it is primarily used for large-span structures including bridges, buildings, and water conservancy projects.
This product enhances the compressive performance of concrete through prestressing technology and is commonly employed in post-tensioning construction applications. Product Specifications GB/T 5224-2014 Standard ASTM A416 1X7 Standard JIS G 3536 Standard Product Display
Product Advantages
- Excellent Material: Manufactured from high-quality high carbon steel wire rod 82B, which has undergone stabilization treatment High Tensile Strength: Up to 1860MPa with excellent toughness, suitable for bridges, high-rise buildings, water conservancy projects, and more Low Relaxation Characteristics: Relaxation rate ≤ 1%, minimal stress loss during long-term use, ensuring prestressed structure durability and reducing maintenance costs Complete Specifications: Various models ranging from 9.53mm to 21.8mm diameters to meet different engineering requirements, with specialized tensioning equipment and anchoring devices available
Applications
s PC Strands are primarily used in prestressed concrete structure reinforcement applications including: Large-span bridges for railway and highway infrastructure Overhead crane beams Rock-soil anchoring projects Multi-storey industrial buildings Stadiums and sports facilities Coal mining operations Product Certification Our steel wire rope meets international production standards and holds multiple certifications including: SGS Certification CE Certification ISO Certification
Technical Data — Diameter, Weight & Breaking Load
| Steel Strand Structure | Nominal Diameter (mm) | Diameter Tolerance (mm) | Nominal Cross-Sectional Area (mm²) | Approx. Weight per Meter (g/m) | Core Wire Diameter Range (%) |
|---|---|---|---|---|---|
| 1x7 | 9.50 (9.53) | +0.30 | 54.8 | 430 | ≥2.5 |
| 1x7 | 11.10 (11.11) | ±0.15 | 74.2 | 582 | - |
| 1x7 | 12.70 | - | 98.7 | 775 | - |
| 1x7 | 15.20 (15.24) | - | 140 | 1101 | - |
| 1x7 | 15.70 | +0.40/-0.15 | 150 | 1178 | - |
| 1x7 | 17.80 (17.78) | - | 191 (189.7) | 1500 | - |
| 1x7 | 18.90 | - | 220 | 1727 | - |
| 1x7 | 21.60 | - | 285 | 2237 | - |
| Grade | Nominal Diameter (mm) | Tolerance (mm) | Section Area (mm²) | Strand Weight (kg/1000m) | Minimum Breaking Load (KN) | Minimum Load at 1% Extension (KN) | Elongation (%) | 1000Hrs Relaxation (%) |
|---|---|---|---|---|---|---|---|---|
| 250 | 9.53 | ±0.41 | 51.61 | 405 | 89.0 | 80.1 | ≥3.5 | 2.5-3.5 |
| 250 | 11.11 | ±0.41 | 69.68 | 548 | 120.1 | 108.1 | ≥3.5 | 2.5-3.5 |
| 250 | 12.70 | ±0.41 | 92.90 | 730 | 160.1 | 144.1 | ≥3.5 | 2.5-3.5 |
| 250 | 15.24 | ±0.41 | 139.35 | 1094 | 240.2 | 216.2 | ≥3.5 | 2.5-3.5 |
| 270 | 9.53 | +0.65/-0.15 | 54.84 | 432 | 102.3 | 92.1 | ≥3.5 | 2.5-3.5 |
| 270 | 11.11 | +0.65/-0.15 | 74.19 | 582 | 137.9 | 124.1 | ≥3.5 | 2.5-3.5 |
| 270 | 12.7 | +0.65/-0.15 | 98.71 | 775 | 183.7 | 165.3 | ≥3.5 | 2.5-3.5 |
| 270 | 15.24 | +0.65/-0.15 | 140.00 | 1102 | 260.7 | 234.6 | ≥3.5 | 2.5-3.5 |
| Steel Grade | Nominal Diameter (mm) | Tolerance (mm) | Section Area (mm²) | Strand Weight (kg/1000m) | Breaking Load (KN) | Load at 0.2% Permanent Elongation (KN) | Minimum Elongation (%) | Relaxation Value 1000h (%) |
|---|---|---|---|---|---|---|---|---|
| SWPR7A | 9.3 | - | 51.61 | 405 | 88.8 | 75.5 | ≥3.5 | ≤3.0 |
| SWPR7A | 10.8 | +0.4/-0.2 | 69.68 | 546 | 120.0 | 102.0 | ≥3.5 | ≤3.0 |
| SWPR7A | 12 | +0.4/-0.2 | 92.90 | 729 | 160.0 | 136.0 | ≥3.5 | ≤3.0 |
| SWPR7A | 15 | - | 138.70 | 1101 | 240.0 | 204.0 | ≥3.5 | ≤3.0 |
| SWPR7B | 9.2 | - | 54.84 | 432 | 102.0 | 86.8 | ≥3.5 | ≤3.0 |
| SWPR7B | 11.1 | +0.4/-0.2 | 74.19 | 580 | 138.0 | 118.0 | ≥3.5 | ≤3.0 |
| SWPR7B | 12.7 | +0.4/-0.2 | 98.71 | 774 | 183.0 | 156.0 | ≥3.5 | ≤3.0 |
| SWPR7B | 15.2 | - | 138.70 | 1101 | 261.0 | 222.0 | ≥3.5 | ≤3.0 |
Values are typical mill data. Request the full mill test certificate for your exact specification.
