ASTM A416 Grade 270 Prestressed Concrete Steel Strand 9.53mm 12.7mm 15.2mm
Diameter: 9.53mm-21.8mm · Steel Grade: SWRH 82B High Carbon Steel
Details

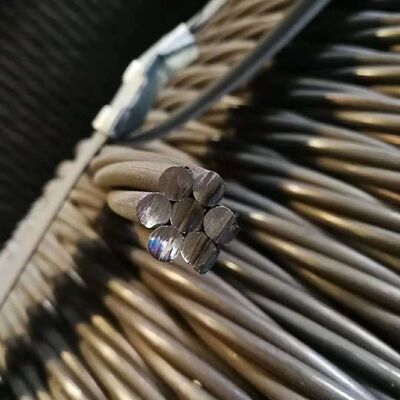

Low Relaxation PC Strand 9.53mm 15.2mm 12.7mm ASTM A416 Galvanized PC Strand 1*7
Key Specifications
| Product Name | 7 Wire PC Strand |
|---|---|
| Steel Grade | SWRH 82B High Carbon Steel |
| Standard | GB/T 5224-2014, ASTM A416, BS 5896, JIS G 3536 |
| Tensile Strength | 1860Mpa |
| Diameter | 9.53-21.8mm |

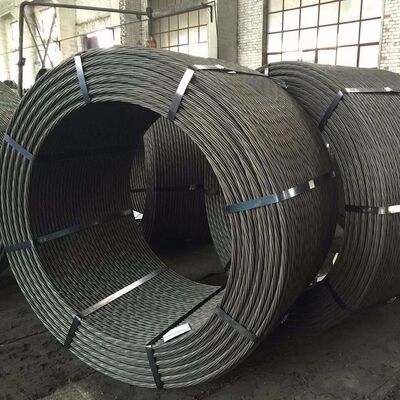

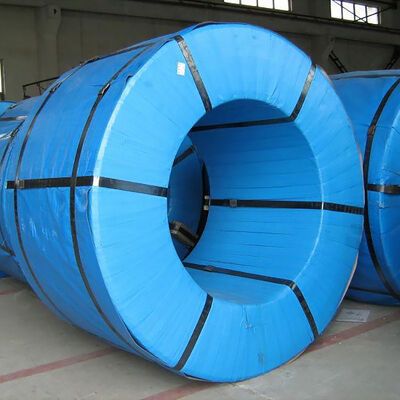

| Package | Packing In Coils ,with PVC Film And Weaving Bag / Hessian Cloth |
| Application | Bridges On Railway And Highway, Overhead Crane Beam, Rock-soil Anchoring Project |
| Featrue | Low Relaxation |
Trade Information
Brand Name
CSW
Model Number
CSW-PC-1*7
Place of Origin
Shandong, China
Certification
SGS, ISO, CE, ROHS
Standard Packaging
3.0-3.5Tons /Coil
Delivery Time
5-10 Days
Payment Terms
T/T
Supply Ability
70000 Tons/Year
Need this exact spec?Factory quote within 24 hours — send diameter, quantity & destination port.
Inquire Now
WhatsApp
Product Advantages
- Ultra high strength, precise force control: Made of high carbon steel wire rod through cold drawing, twisting, and stabilization treatment, with a tensile strength of over 1860MPa, far exceeding ordinary steel; Low relaxation performance ensures that stress loss is less than 2% during long-term use, providing long-lasting and precise prestressing support for concrete structures.
- Flexible and adaptable, efficient construction: The multi wire twisted structure combines rigidity and flexibility, and can adapt to complex curve reinforcement requirements; The length of a single piece can reach up to kilometers, reducing the number of on-site joints, significantly shortening the construction period, and lowering labor costs.
- Corrosion resistant and durable, with a long lifespan: The surface can be galvanized, aluminum zinc coated, or coated with epoxy resin, which can effectively resist corrosion in harsh environments such as high humidity and salt alkali; Strong adhesion with concrete, when used in conjunction with anti-corrosion sleeves, the structural lifespan can reach over a hundred years.
- Diverse specifications and flexible customization: Different structures such as 7-wire and 19 wire, as well as various diameters such as 15.2mm and 17.8mm, can be customized according to engineering needs.
- Special models such as low relaxation, ultra-high strength, and anti-corrosion can also be provided to adapt to various scenarios from bridges to nuclear power.
Applications
As the core load-bearing material for bridges, high-speed railways, and highways, it is used for box girders and stay cables of large-span bridges, ballastless track beds of high-speed railway tracks, and slope reinforcement of highways. By using prestress to counteract structural self weight and dynamic loads, it improves engineering stability and service life.
Certifications
Our steel wire rope meets international production standards and has obtained multiple certifications such as SGS, CE, ISO, etc.
Technical Data — Diameter, Weight & Breaking Load
| Steel Strand Structure | Nominal Diameter (mm) | Diameter Tolerance (mm) | Nominal Cross-Sectional Area (mm²) | Approx. Weight per Meter (g/m) | Range (extended)% of core wire's diameter not less than |
|---|---|---|---|---|---|
| 1×7 | 9.50 (9.53) | +0.30 -0.15 | 54.8 | 430 | 2.5 |
| 1×7 | 11.10 (11.11) | +0.30 -0.15 | 74.2 | 582 | 2.5 |
| 1×7 | 12.70 | +0.30 -0.15 | 98.7 | 775 | 2.5 |
| 1×7 | 15.20 (15.24) | +0.30 -0.15 | 140 | 1101 | 2.5 |
| 1×7 | 15.70 | +0.40 -0.15 | 150 | 1178 | 2.5 |
| 1×7 | 17.80 (17.78) | +0.40 -0.15 | 191 (189.7) | 1500 | 2.5 |
| 1×7 | 18.90 | +0.40 -0.15 | 220 | 1727 | 2.5 |
| 1×7 | 21.60 | +0.40 -0.15 | 285 | 2237 | 2.5 |
| Steel Grade | Nominal Diameter (mm) | Tolerance (mm) | Area of Section (mm²) | Weight of Strand (kg/1000m) | Breaking Load (KN) | Load at 0.2% Permanent Elongation (≥KN) | Minimum Elongation at Max Load ≥(%) | Relaxation Value 1000h ≤(%) |
|---|---|---|---|---|---|---|---|---|
| SWPR7A | 9.3 | +0.4 -0.2 | 51.61 | 405 | 88.8 | 75.5 | 3.5 | 3.0 |
| SWPR7A | 10.8 | +0.4 -0.2 | 69.68 | 546 | 120.0 | 102.0 | 3.5 | 3.0 |
| SWPR7A | 12 | +0.4 -0.2 | 92.90 | 729 | 160.0 | 136.0 | 3.5 | 3.0 |
| SWPR7A | 15 | +0.4 -0.2 | 138.70 | 1101 | 240.0 | 204.0 | 3.5 | 3.0 |
| SWPR7B | 9.2 | +0.4 -0.2 | 54.84 | 432 | 102.0 | 86.8 | 3.5 | 3.0 |
| SWPR7B | 11.1 | +0.4 -0.2 | 74.19 | 580 | 138.0 | 118.0 | 3.5 | 3.0 |
| SWPR7B | 12.7 | +0.4 -0.2 | 98.71 | 774 | 183.0 | 156.0 | 3.5 | 3.0 |
| SWPR7B | 15.2 | +0.4 -0.2 | 138.70 | 1101 | 261.0 | 222.0 | 3.5 | 3.0 |
Values are typical mill data. Request the full mill test certificate for your exact specification.
