ASTM A416 Grade 270 Prestressed Concrete Steel Strand 9.53mm 12.7mm 15.2mm
Diameter: 9.53mm-21.8mm · Steel Grade: SWRH 82B High Carbon Steel
Details
High Carbon Steel Low Relaxation Prestressed Concrete Strand For Bridges / Buildings

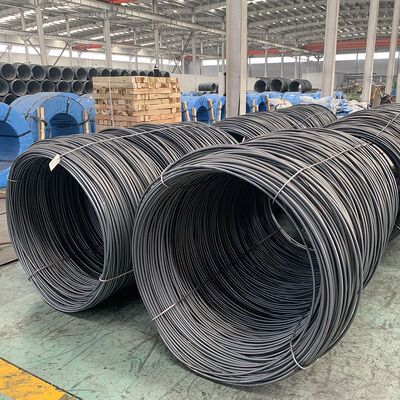

Prestressed steel strand is a high-strength building material made from high-quality high carbon steel wire rod as raw material, which is cold drawn into steel wire through multiple processes such as acid washing, phosphating, and drawing. It is then twisted into bundles by 2-7 steel wires and finally stabilized.
Key Specifications
| Product Name | Low Relaxation Prestressed Concrete Strand |
|---|---|
| Steel Grade | SWRH 82B High Carbon Steel |
| Featrue | Low Relaxation |
| Standard | GB/T 5224-2014, ASTM A416, BS 5896, JIS G 3536 |
| Diameter | 9.53-21.8mm |

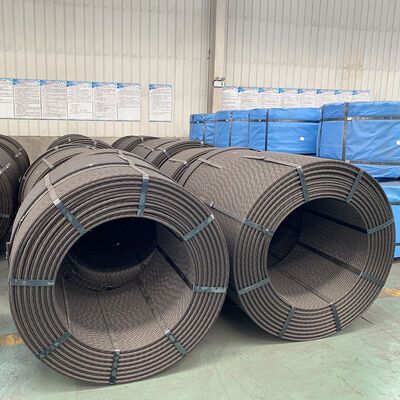

| Package | Packing In Coils ,with PVC Film And Weaving Bag / Hessian Cloth |
| Tensile Strength | 1860Mpa |
| Application | Bridges On Railway And Highway, Overhead Crane Beam, Rock-soil Anchoring Project |
Trade Information
Brand Name
CSW
Model Number
CSW-PC-1*7
Place of Origin
Shandong, China
Certification
SGS, ISO, CE, ROHS
Standard Packaging
3.0-3.5Tons /Coil
Delivery Time
5-10 Days
Payment Terms
T/T
Supply Ability
70000 Tons/Year
Need this exact spec?Factory quote within 24 hours — send diameter, quantity & destination port.
Inquire Now
WhatsApp
Product Introduction

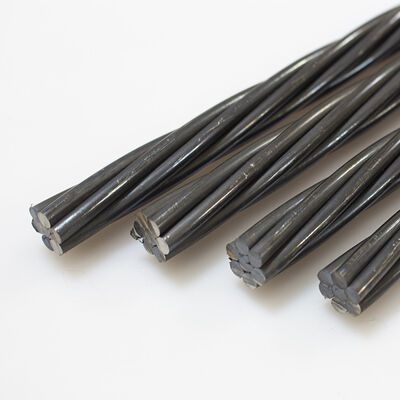

Prestressed steel strand is a high-strength building material made from high-quality high carbon steel wire rod as raw material, which is cold drawn into steel wire through multiple processes such as acid washing, phosphating, and drawing. It is then twisted into bundles by 2-7 steel wires and finally stabilized. Mainstream products can be divided into 1 × 7 standard type, 1 × 3 compact type, etc. according to their structure.
The tensile strength can reach 1860MPa or more, the yield strength to tensile strength ratio is ≥ 0.9, and the elongation rate is ≥ 3.5%. All performance indicators comply with national standards such as GB/T 5224-2014.
Product Advantages
- Compared to ordinary steel bars, prestressed steel strands have three core advantages: High strength density ratio: Under the same load-bearing requirements, the amount of steel used is only 1/4 of that of ordinary steel bars, greatly reducing the self weight of the structure High relaxation stability: After low-temperature tempering stabilization treatment, the relaxation rate after 1000 hours is ≤ 2.5%, and the long-term stress loss is small Excellent corrosion resistance: After surface galvanizing or epoxy coating treatment, it can serve for a long time in harsh environments such as high humidity and corrosive soil
Applications
The product is widely used in the field of large-scale civil engineering: Bridge engineering: Prestressed tensioning of large-span box girders and cable-stayed bridge cables Hydraulic engineering: Crack resistance reinforcement for hydroelectric dam and culvert Construction engineering: Stress control of super high-rise building floors and prefabricated components Geotechnical engineering: Slope support, mining anchor cables and other applications Providing reliable mechanical support for various heavy-duty and large-span structures.
Certifications
Our steel wire rope meets international production standards and has obtained multiple certifications: SGS CE ISO
Technical Data — Diameter, Weight & Breaking Load
| Steel Strand Structure | Nominal Diameter Da /mm | Dia Tolerance /mm | Strand Nominal Cross-Sectional Area Sn/mm² | Approx. Weight per meter(g/m) | Range(extened)% of core wire's diameter not less than |
|---|---|---|---|---|---|
| 1x7 | 9.50 (9.53) | +0.30 -0.15 | 54.8 | 430 | 2.5 |
| 1x7 | 11.10 (11.11) | +0.30 -0.15 | 74.2 | 582 | 2.5 |
| 1x7 | 12.70 | +0.30 -0.15 | 98.7 | 775 | 2.5 |
| 1x7 | 15.20 (15.24) | +0.30 -0.15 | 140 | 1101 | 2.5 |
| 1x7 | 15.70 | +0.40 -0.15 | 150 | 1178 | 2.5 |
| 1x7 | 17.80 (17.78) | +0.40 -0.15 | 191 (189.7) | 1500 | 2.5 |
| 1x7 | 18.90 | +0.40 -0.15 | 220 | 1727 | 2.5 |
| 1x7 | 21.60 | +0.40 -0.15 | 285 | 2237 | 2.5 |
| Grade | Nominal Diameter (mm) | Tolerance (mm) | Area of Section (mm²) | Weight of strand (kg/1000m) | Minimum Breaking Load (KN) | Minimum Load at 1% extension (KN) | Elongation not less than (%) | 1000Hrs Relaxation Value Not More Than |
|---|---|---|---|---|---|---|---|---|
| 250 | 9.53 | ±0.41 | 51.61 | 405 | 89.0 | 80.1 | 3.5 | 2.5 | 3.5 |
| 250 | 11.11 | ±0.41 | 69.68 | 548 | 120.1 | 108.1 | 3.5 | 2.5 | 3.5 |
| 250 | 12.70 | ±0.41 | 92.90 | 730 | 160.1 | 144.1 | 3.5 | 2.5 | 3.5 |
| 250 | 15.24 | ±0.41 | 139.35 | 1094 | 240.2 | 216.2 | 3.5 | 2.5 | 3.5 |
| 270 | 9.53 | +0.65 -0.15 | 54.84 | 432 | 102.3 | 92.1 | 3.5 | 2.5 | 3.5 |
| 270 | 11.11 | +0.65 -0.15 | 74.19 | 582 | 137.9 | 124.1 | 3.5 | 2.5 | 3.5 |
| 270 | 12.7 | +0.65 -0.15 | 98.71 | 775 | 183.7 | 165.3 | 3.5 | 2.5 | 3.5 |
| 270 | 15.24 | +0.65 -0.15 | 140.00 | 1102 | 260.7 | 234.6 | 3.5 | 2.5 | 3.5 |
Values are typical mill data. Request the full mill test certificate for your exact specification.
