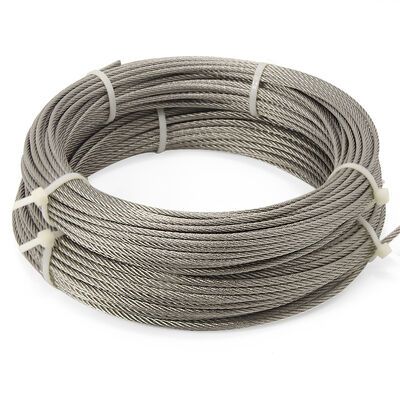

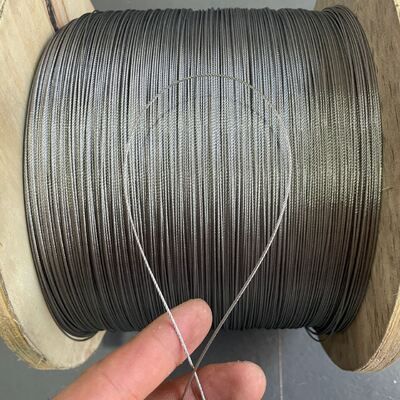

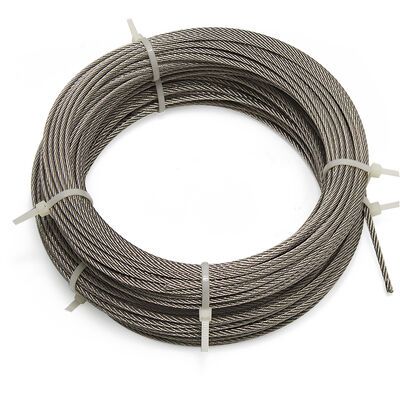

0.3mm-6mm Stainless Steel Wire Rope 1x7 For Hanging Traction / Guardrail

Product Introduction

The 1x7 stainless steel wire rope is a single strand stainless steel wire rope made by twisting one central wire and six outer wires. It has high strength rigidity, excellent corrosion resistance, and smooth surface characteristics, and is widely used in precision machinery, outdoor marine, civilian traction and other scenarios.

Product Advantages

• High strength and rigidity: The single strand structure has no twisting gap between the strands, and the steel wire is subjected to more concentrated forces.
• Under the same diameter, it has stronger rigidity than multi strand steel wire ropes and excellent resistance to bending deformation, making it suitable for scenarios that require linear tension.
• Corrosion resistance: 304 stainless steel can cope with ordinary humid, mild acidic and alkaline environments; 316 stainless steel can be used for a long time in harsh environments such as seawater and chemical corrosion, with a much slower corrosion rate than galvanized steel wire ropes.
• Smooth surface: The surface of the single strand structure steel wire rope does not have the concave convex texture of multi strand twisting, and has less friction with the pulley and guide groove, making it less prone to wear and jamming, suitable for equipment that requires frequent winding.
• Rich specifications for small diameters: can produce extremely fine models (such as 0.3mm-2mm), which can meet the subtle tensile needs of precision machinery and small equipment.

Applications

Common uses of 1×7 structure, 0.3-6.0mm diameter stainless steel wire rope: In the field of precision machinery, traction mechanisms for printers and automation equipment rely on their small diameter and high strength to achieve precise transmission. Outdoor and marine scenes: yacht rigging, outdoor drying racks, seaside guardrails, etc., utilizing the anti-corrosion ability of stainless steel to resist moisture and salt erosion. Daily civilian scenarios: clothesline ropes, fitness equipment ropes, door and window traction ropes, etc., balancing durability and aesthetics.

Medical devices: Traction components of some surgical instruments and rehabilitation equipment are required to have no rust and high cleanliness.

Certifications

Our steel wire rope meets international production standards and has obtained multiple certifications such as SGS, CE, ISO, etc.

Technical Data — Diameter, Weight & Breaking Load

Values are typical mill data. Request the full mill test certificate for your exact specification.
