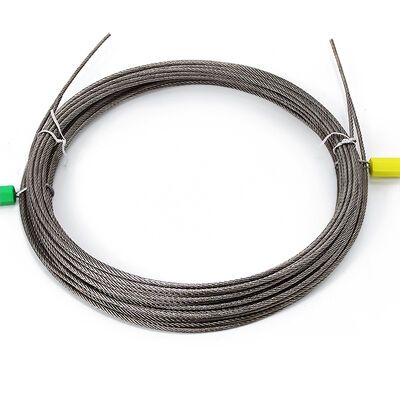

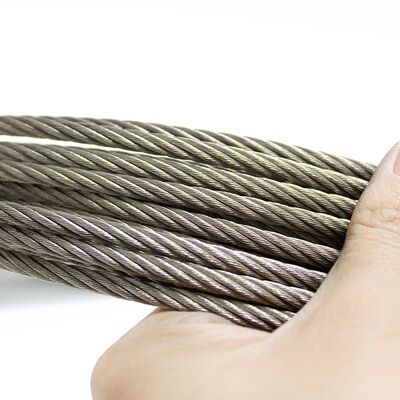

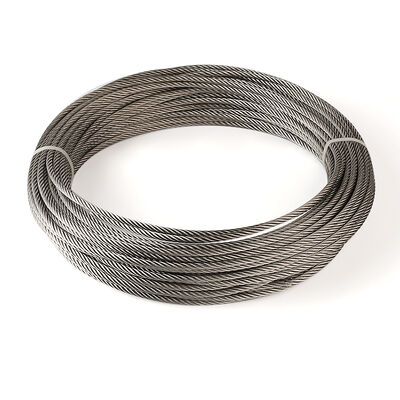

1x19 Stainless Steel Wire Rope , 316 Stainless Steel Cable 0.45mm-3.0mm DIN EN12385-4

The 1x19 stainless steel wire rope is a single stranded steel wire rope, tightly twisted from 19 stainless steel wires, and belongs to the category of hard wire ropes. It combines the corrosion resistance of stainless steel with the high-strength characteristics of a single stranded structure, with a smooth surface, strong rigidity, and resistance to deformation.

Key Specifications

Product Name	1x19 Stainless Steel Wire Rope
Steel Grade	201/304/316/316L Stainless Steel
Surface	Bright Smooth Surface
Structure	1x19
Diameter	0.45-5.0mm
Package	Wooden Reel/ Iron Reel/ Plastic Reel/ Roll

Trade Information

Brand Name

CSW

Model Number

CSW-SS-1*19

Place of Origin

Shandong, China

Certification

SGS,CE,ISO,ROHS

Standard Packaging

500-3000m/ Reel

Delivery Time

5-10 Days

Payment Terms

T/T

Supply Ability

70000 Tons/ Year

Need this exact spec?Factory quote within 24 hours — send diameter, quantity & destination port.

Inquire Now WhatsApp

Product Introduction

Product Advantages

Common specifications: The diameter range is from 0.5mm to 10mm, with 1mm-3mm specifications mostly used for precision instruments and 5mm-10mm specifications suitable for heavy machinery traction.
Customization options: Surface coating (such as nylon coating), special twist direction (left twist/right twist), cutting length can be customized according to needs, and pre straightening treatment services are provided to reduce the straightening process after installation.
Adaptation scenarios: In addition to conventional industrial scenarios, it can also be used in high-end door and window transmission systems, stage machinery control, aerospace precision component traction, and other fields that require extremely high stability.

Applications

s Common uses of 1×19 structure, 0.4-5.0mm diameter stainless steel wire rope: This type of steel wire rope is often used in precision mechanical control, elevator speed limiters, medical equipment, marine engineering equipment and other scenarios, especially suitable for situations with high requirements for straightness, torsion resistance and wear resistance. It has obvious advantages in narrow spaces or operations that require precise traction. Product Certification Our steel wire rope meets international production standards and has obtained multiple certifications such as SGS, CE, ISO, etc.

Technical Data — Diameter, Weight & Breaking Load

Diameter mm	GB/T9944-2002	GB/T9944-2002	EN 12385-4	EN 12385-4	EN 12385-4
	Min. Breaking load (KN)	Approx. weight (Kg/100m)	Min. Breaking load (KN) 1570N/mm²	Min. Breaking load (KN) 1770N/mm²	Approx. weight (Kg/100m)
0.4	0.17	0.08	0.132	0.149	0.08
0.5	0.24	0.13	0.206	0.232	0.13
0.6	0.343	0.18	0.297	0.335	0.18
0.8	0.617	0.32	0.53	0.59	0.32
1	0.95	0.5	0.82	0.93	0.5
1.2	1.27	0.72	1.19	1.34	0.72
1.5	2.25	1.13	1.85	2.09	1.13
1.8	3.1	1.32	2.67	3.01	1.32
2	3.82	2	3.3	3.72	2
2.5	5.58	3.13	5.15	5.81	3.13
3	8.03	4.5	7.42	8.36	4.5
4	13.9	8	13.19	—	8
5	21	12.5	20.61	—	12.5
